Inverse kinematics and motion planning#

This tutorial builds a complete pick-and-place task with a Franka arm: solve inverse kinematics (IK) for a target end-effector pose, plan a collision-free path to that configuration, then close the gripper and lift a cube. Along the way it covers the pose conventions IK expects and why the two control modes (position and force) are used at different stages.

The complete script is examples/tutorials/IK_motion_planning_grasp.py.

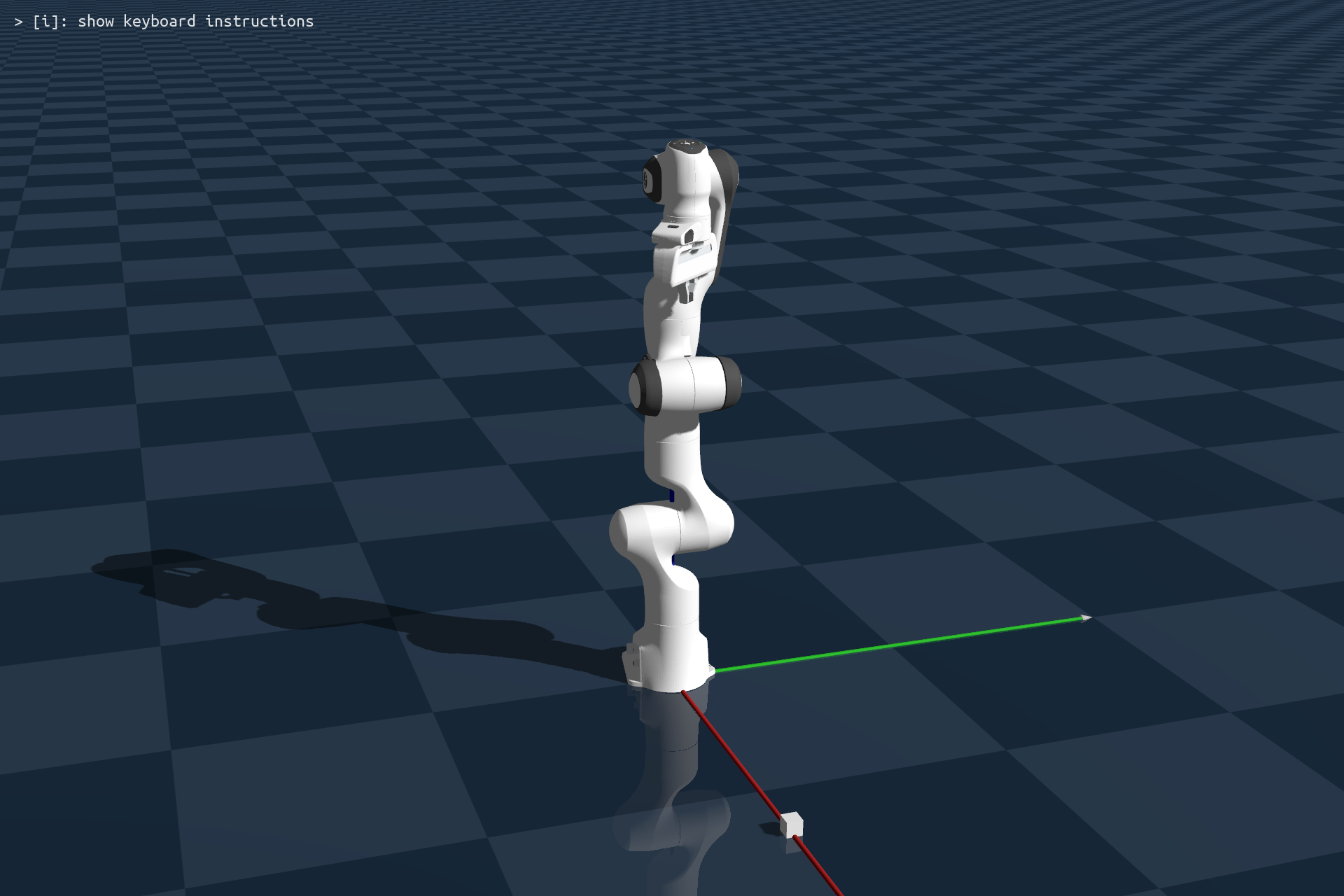

A Franka arm positioned above a small cube on the ground plane, viewed in the Genesis World viewer.

Motion planning uses the OMPL library. Install it with the instructions on the installation page before running the example.

Scene and robot setup#

Load a ground plane, a small cube to grasp, and the Franka arm, then build the scene:

cube = scene.add_entity(
    gs.morphs.Box(
        size=(0.04, 0.04, 0.04),
        pos=(0.65, 0.0, 0.02),  # meters, Z-up
    )
)
franka = scene.add_entity(
    gs.morphs.MJCF(file="xml/franka_emika_panda/panda.xml"),
)
scene.build()

The Franka has nine degrees of freedom (dof): seven arm joints and two gripper fingers. Splitting them into two index arrays lets you command the arm and the fingers independently:

motors_dof = np.arange(7)
fingers_dof = np.arange(7, 9)

Position control is a PD controller, so it needs per-dof stiffness (kp) and damping (kv) gains, plus a force range. The values below are tuned for the Franka; a different robot needs its own, and a well-authored URDF or MJCF may already provide them.

franka.set_dofs_kp(
    np.array([4500, 4500, 3500, 3500, 2000, 2000, 2000, 100, 100]),
)
franka.set_dofs_kv(
    np.array([450, 450, 350, 350, 200, 200, 200, 10, 10]),
)
franka.set_dofs_force_range(
    np.array([-87, -87, -87, -87, -12, -12, -12, -100, -100]),
    np.array([87, 87, 87, 87, 12, 12, 12, 100, 100]),
)

Solving inverse kinematics#

IK answers the question “what joint angles put the end-effector at this pose?” In Genesis World it is a method on the robot entity: name the link that acts as the end-effector, give it a target pose, and it returns a full-body configuration (qpos).

end_effector = franka.get_link("hand")

qpos = franka.inverse_kinematics(
    link=end_effector,
    pos=np.array([0.65, 0.0, 0.25]),  # world-frame position, meters
    quat=np.array([0, 1, 0, 0]),  # w-x-y-z; 180 deg about X, gripper points down
)

The target pos and quat are in the world frame, using the right-handed, Z-up coordinate system and the scalar-first (w, x, y, z) quaternion convention. Here (0, 1, 0, 0) is a 180-degree rotation about the world X-axis, which orients the gripper to point straight down at the table.

The returned qpos covers every dof, including the fingers. Setting the finger entries opens the gripper before the approach:

qpos[-2:] = 0.04  # open gripper, meters per finger

Planning a path to the configuration#

IK gives a goal configuration but not how to get there. plan_path finds a collision-free trajectory from the current configuration to qpos_goal and returns a list of waypoints, one per simulation step:

path = franka.plan_path(
    qpos_goal=qpos,
    num_waypoints=200,  # 200 steps at dt=0.01 s -> 2 s of motion
)

for waypoint in path:
    franka.control_dofs_position(waypoint)
    scene.step()

# let the PD controller settle onto the final waypoint
for i in range(100):
    scene.step()

Executing the path steps the simulation once per waypoint. The extra 100 steps at the end matter: position control is a PD controller, so the arm trails its commanded target by a small error. Stepping a little longer lets it converge onto the last waypoint before the next phase begins.

Tip

scene.draw_debug_path(path, franka) visualizes the planned trajectory in the viewer, and scene.clear_debug_object(...) removes it afterward. The example uses both to render the path while the arm follows it.

Grasping and lifting#

The rest of the task is a sequence of IK solves and control commands. To reach down to the cube, solve IK for a lower target and drive only the arm dofs with position control:

qpos = franka.inverse_kinematics(
    link=end_effector,
    pos=np.array([0.65, 0.0, 0.130]),
    quat=np.array([0, 1, 0, 0]),
)
franka.control_dofs_position(qpos[:-2], motors_dof)  # arm only; leave fingers as-is
for i in range(100):
    scene.step()

To grasp, switch the fingers from position control to force control. Position control would command a target opening; force control instead applies a steady squeezing force, which holds the cube robustly regardless of its exact width:

franka.control_dofs_position(qpos[:-2], motors_dof)
franka.control_dofs_force(np.array([-0.5, -0.5]), fingers_dof)  # 0.5 N inward per finger
for i in range(100):
    scene.step()

Finally, solve IK for a raised target and hold the grasp while the arm lifts:

qpos = franka.inverse_kinematics(
    link=end_effector,
    pos=np.array([0.65, 0.0, 0.28]),
    quat=np.array([0, 1, 0, 0]),
)
franka.control_dofs_position(qpos[:-2], motors_dof)
for i in range(200):
    scene.step()

The fingers stay under force control from the grasp step, so the cube rises with the gripper.
