📐 Conventions#

This page outlines the coordinate system and mathematical conventions used throughout Genesis.

Coordinate System#

Genesis uses a right-handed coordinate system with the following conventions:

  • +X axis: Points out of the screen (towards the viewer)

  • +Y axis: Points to the left

  • +Z axis: Points upward (vertical)

Quaternion Representation#

Quaternions in Genesis follow the (w, x, y, z) convention, where:

  • w: Scalar component (real part)

  • x, y, z: Vector components (imaginary parts)

This is also known as the “scalar-first” or “Hamilton” convention. When specifying rotations using quaternions, always provide them in this order.

Example#

# Quaternion representing a 90-degree rotation around the Z-axis
rotation = [0.707, 0, 0, 0.707]  # [w, x, y, z]

Gravity#

The gravitational force vector is defined as:

  • Gravity direction: -Z (pointing downward)

  • Default magnitude: 9.81 m/s²

This means objects will naturally fall in the negative Z direction when no other forces are applied.

Axis Conversion at Import Time#

Different 3D asset formats define (or omit) coordinate system conventions. Genesis allows you to define precisely rules to ensure consistency with its Z-up internal representation. The following sections describe how each supported format is handled.

Alignment with Blender Exporters#

Genesis’s asset import behavior is explicitly aligned with Blender’s default exporters settings. Blender is a common authoring tool for robotics and simulation assets, and its exporters apply well-defined axis conversions depending on the target format (for example, exporting from Blender’s internal Z-up space to glTF’s Y-up convention).

By mirroring Blender’s exporter behavior:

  • Assets exported from Blender using default settings import into Genesis with the expected orientation.

  • Users can rely on Blender’s preview and transforms without introducing format-specific workarounds.

  • Cross-format consistency (glTF, STL, OBJ, URDF-referenced meshes) is preserved.

Y-up ↔ Z-up Is Not a Single Convention#

There is no single, universal transformation that converts between Y-up and Z-up coordinate systems. In general, conversions between Y-up and Z-up are defined by 3×3 rotation matrices, and multiple valid matrices exist depending on how the remaining axes (typically forward and right) are mapped. Two assets can both be labeled “Y-up” yet differ in orientation if they choose different forward axes.

As a result, simply stating that an asset is “Y-up” or “Z-up” is not sufficient to fully define its spatial convention. The forward axis choice determines how rotation matrices are defined.

Genesis Convention#

Genesis adopts a specific and consistent Y-up ↔ Z-up mapping aligned with Blender’s exporter behavior. More precisely:

Blender’s internal coordinate system is Z-up. When exporting to Y-up formats, Blender allows you to specify any possible combination of Up and Forward vectors. Genesis adopts Blender’s default Y-up exporter configuration: Y-up, −Z forward. This ensures that:

  • Assets exported from Blender with default axis settings appear identical in Genesis

  • The chosen 3×3 rotation matrix is consistent across formats

  • Axis conversion behavior is predictable and reproducible

  • All references to “Y-up” handling in Genesis therefore refer to this specific Blender-aligned Y-up representation, not an abstract or ambiguous Y-up definition.

glTF (.gltf / .glb)#

In Genesis, glTF assets are always interpreted as Y-up. During import, Genesis automatically converts glTF meshes from Y-up to Z-up. This behavior is fixed and cannot be overridden, ensuring compliance with the glTF specification. After import, the resulting meshes are guaranteed to be in Genesis Z-up space.

Blender leaves the option to export a gtTF as Z-up, by unchecking the +Y-up option. However, Blender is unable to provide the option to reimport the asset correctly. Genesis does not support importing glTF exported as Z-up.

Diagram

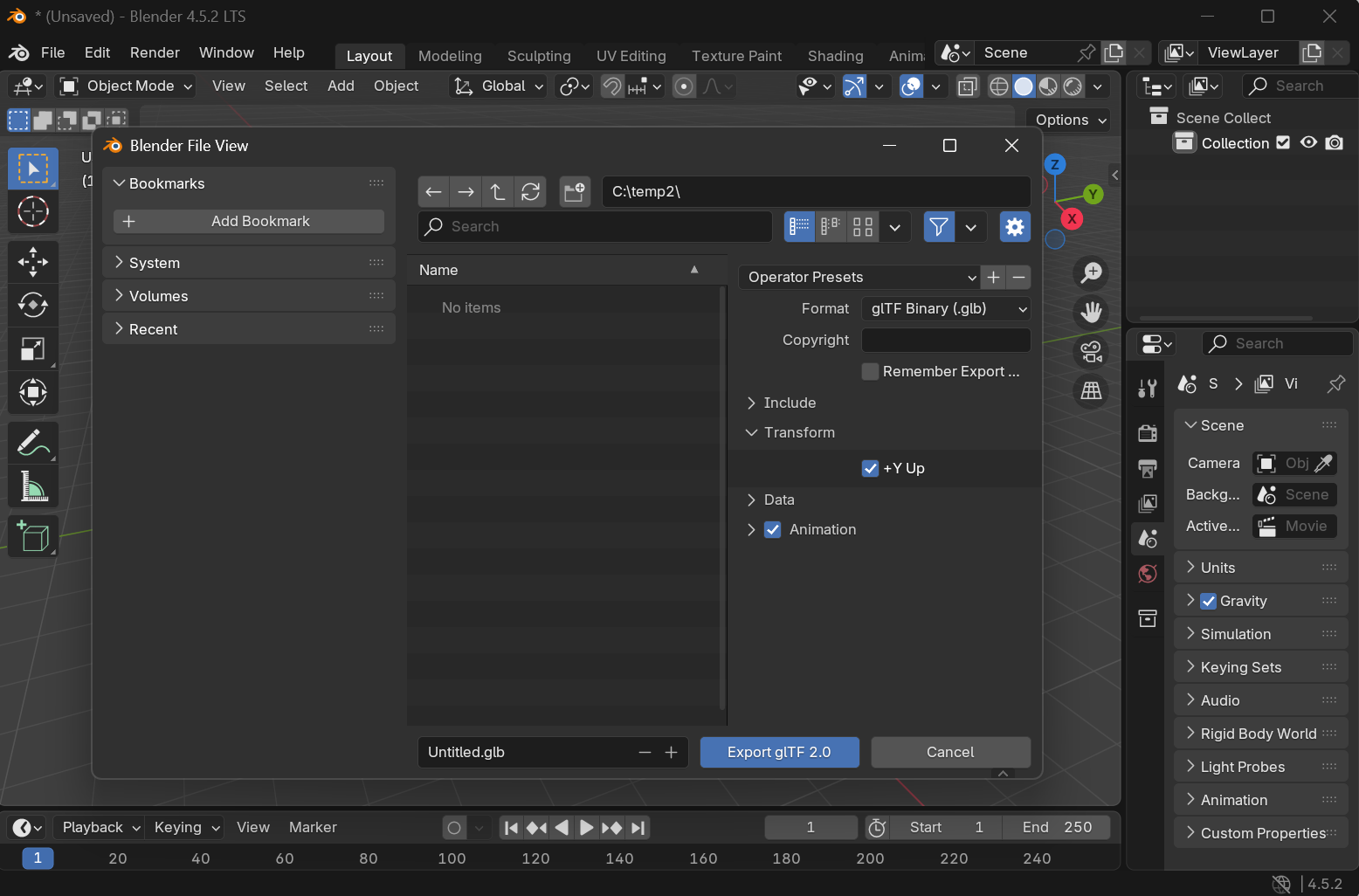

Blender GLTF exporter: https://docs.blender.org/manual/en/2.83/addons/import_export/scene_gltf2.html#transform

STL (.stl) and Wavefront OBJ (.obj)#

STL and Wavefront OBJ formats do not define a standard coordinate system. Therefore, the correct up-axis must be explicitly specified at import. As a result, assets authored in these formats may be either Y-up or Z-up, depending on the originating tool or pipeline. For STL and OBJ files, Genesis allows users to explicitly specify how the asset should be interpreted:

Z-up (default)#

The mesh is assumed to already be in Z-up space. No axis conversion is performed at import time.

Y-up#

The mesh is assumed to be authored in Y-up space and the Y-up → Z-up conversion described above is applied. This flexibility allows STL and OBJ assets from different sources to be imported correctly without modifying the original files.

Diagram

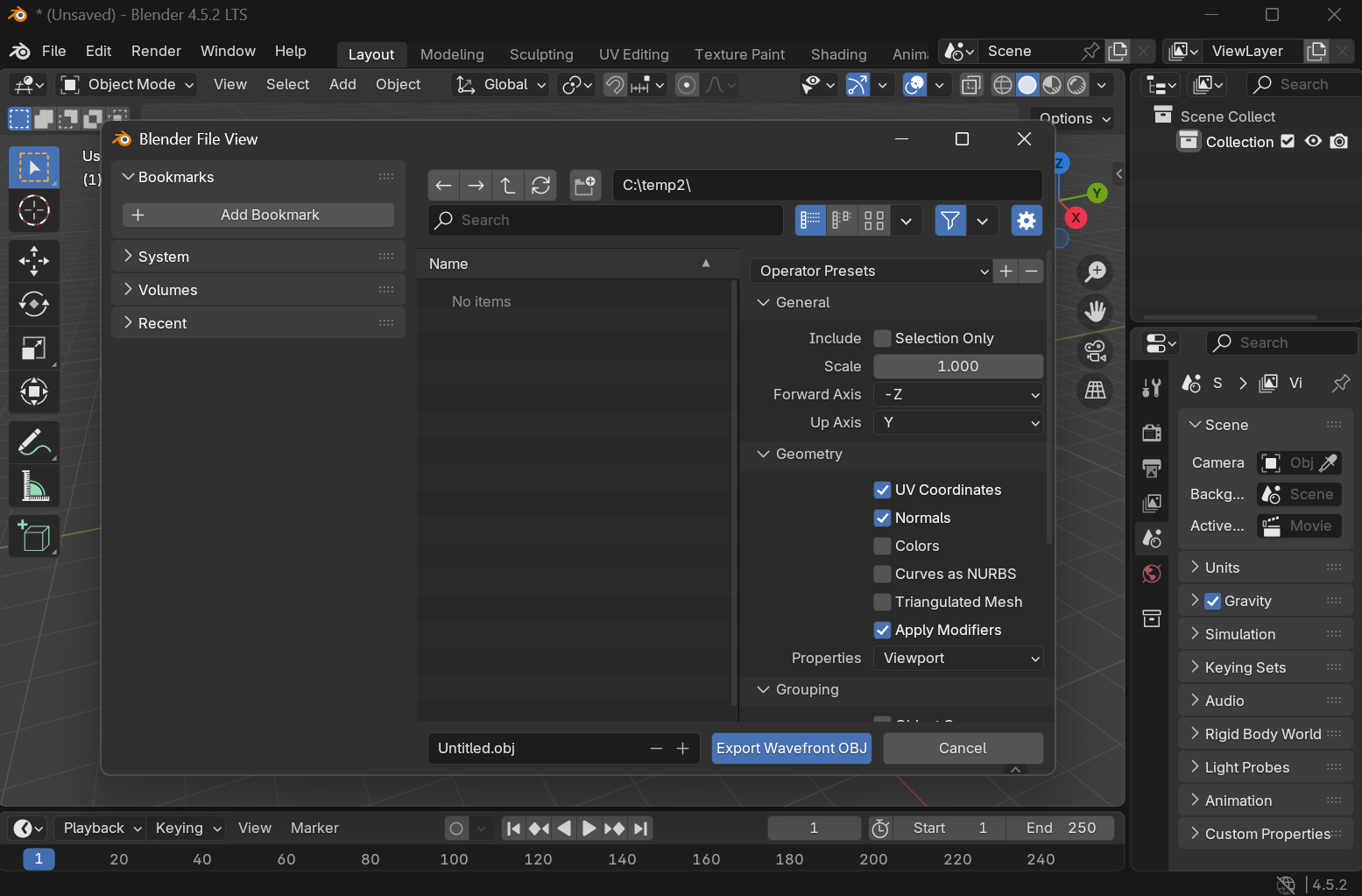

Blender’s Wavefront exporter: https://docs.blender.org/manual/en/4.0/files/import_export/obj.html#object-properties Blender’s STL exporter: https://docs.blender.org/manual/fr/3.6/addons/import_export/mesh_stl.html#transform

Importing assets correctly in Genesis#

In order to hint Genesis, a file_meshes_are_zup import option in the FileMorph class is available

obj_y = scene.add_entity(
    morph=gs.morphs.Mesh(
        file="my_obj_file.obj",
        # We are hinting Genesis that the meshes referenced by this file are
        # not in Z-up space and thus need to be converted at import time.
        # True = mesh is already Z-up; False = mesh is Y-up and needs conversion.
        file_meshes_are_zup=False,
    ),
)

After import, the morph will have a imported_as_zup flag that allows to know if a correction was done on the meshes:

obj_y.vgeoms[0].mesh.metadata["imported_as_zup"]
